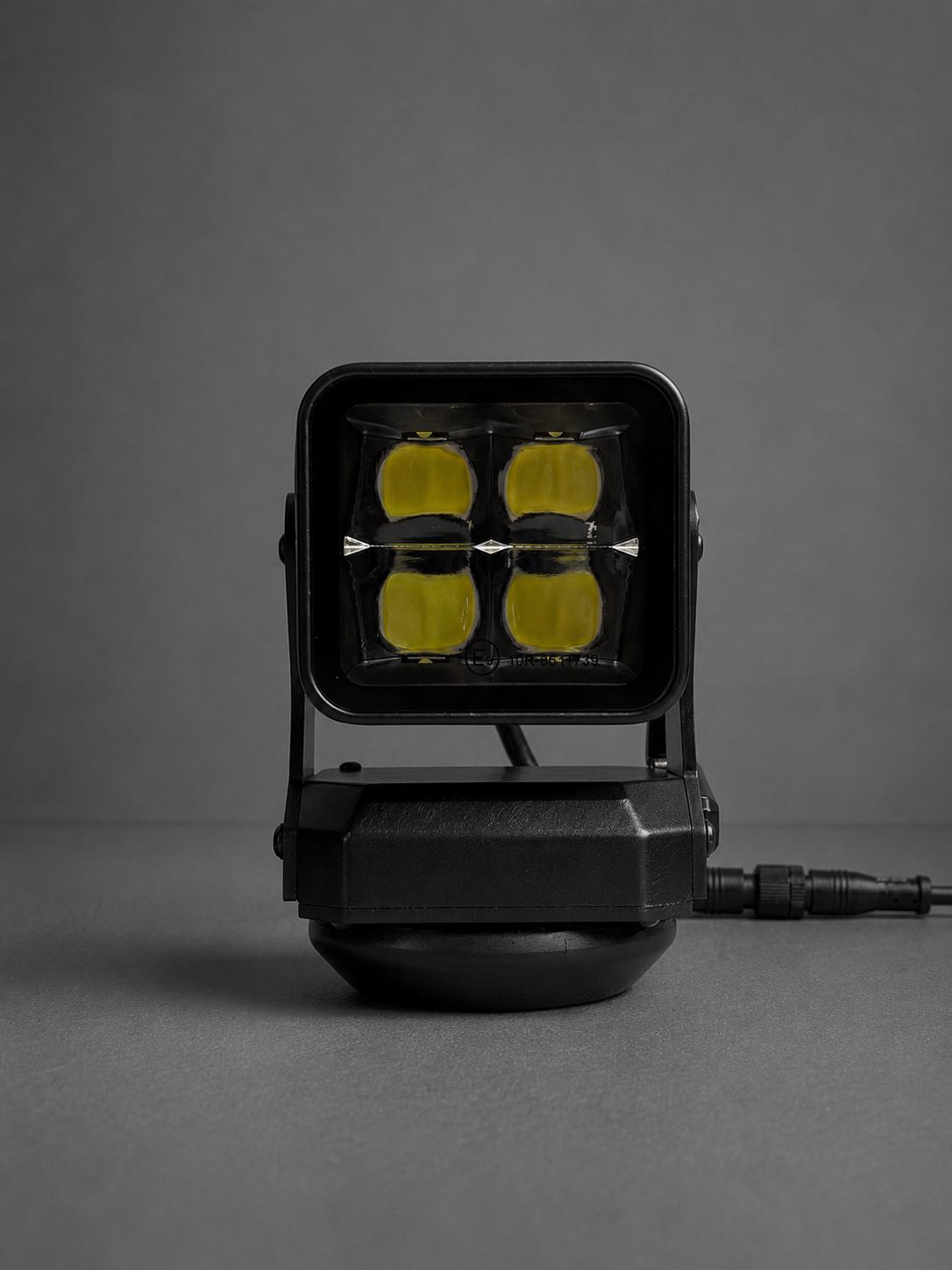

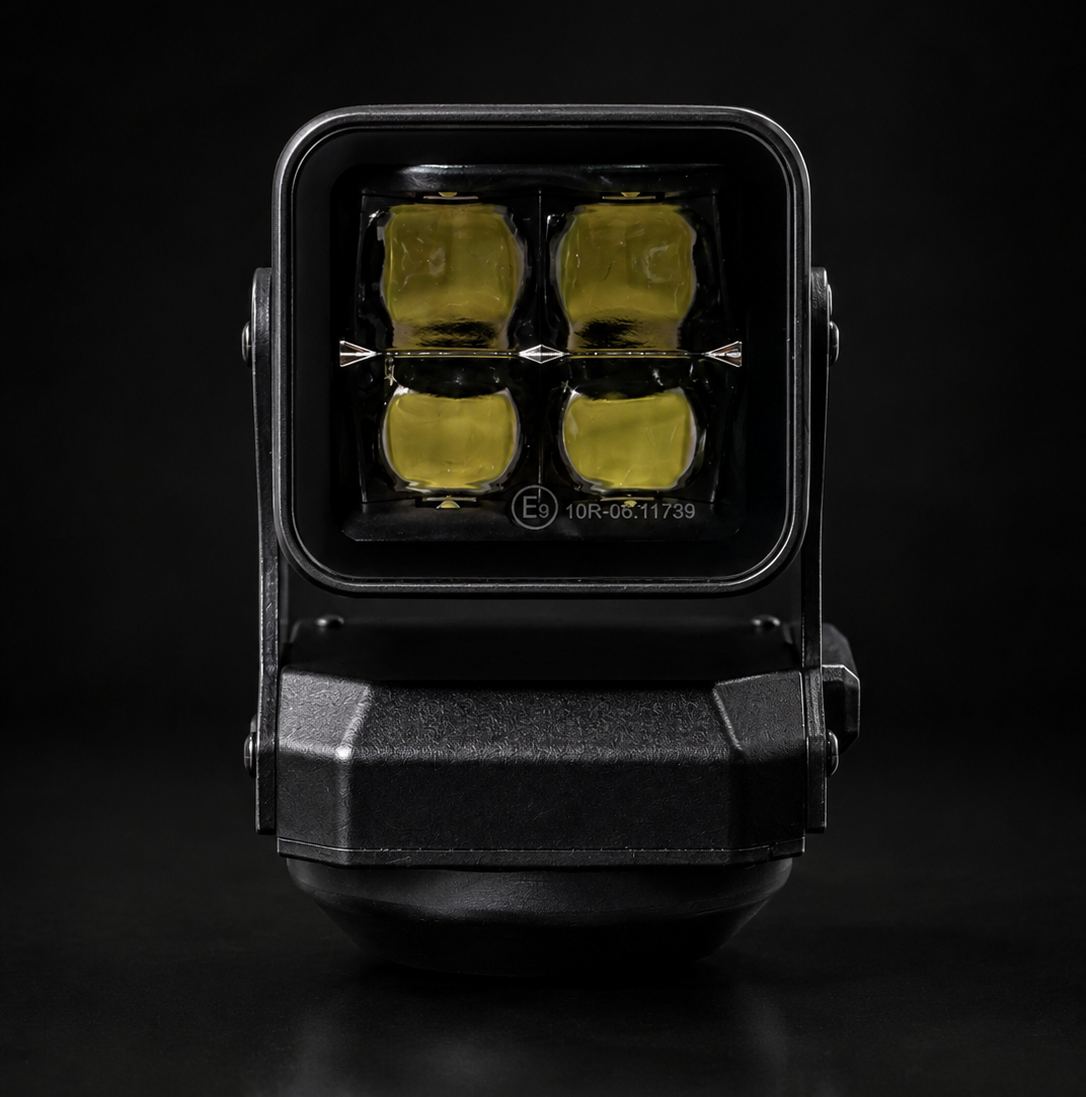

360° Rotatable Remote Controlled LED Search Light, 12-24V

40W Remotely Operated Rotating Light

Remote-controlled rotating search light for marine, automotive, heavy equipment, farming and search-rescue tasks. High brightness, rugged billet aluminum housing, full IP67 sealing and vibration resistance. Comes with wired joystick controller and plug-and-play wiring harness.

Specifications

Light Unit

• Beam Type: Spot
• Operating Voltage: 10‑30V compatible
• LED Chip: 4 × 10W high-power LED
• Lumen Output: 4,800 lm
• 1 Lux Distance: 271 m (890 ft)
• Colour Temperature: 6000‑6500K
• Max Power Draw: 40W (3A @ 13.5V)
• Housing: Cast aluminium
• Lens: UV-stable polycarbonate
• Certifications: IP67, RoHS, shock & vibration resistant
• Protection: Automatic thermal protection

Rotating Assembly

• Motor Power: 10W (0.7A @13.5V)
• Rating: IP67, vibration & shock resistant
• Main Housing: Billet 6061 aluminium
• Brackets: 5052 aluminium
• Base: UV-stable thermal plastic
• Tilt Range: 90°
• Pan Range: Infinite continuous rotation
• Hardware: Black stainless steel
• Voltage: 10‑30V compatible
• Resting Power: 0.05W
• Circuit Protection: Reverse polarity & voltage transient protection

Joystick Controller

• Voltage: 10‑30V compatible
• Rating: IP67 sealed
• Sensor: Hall-effect sensor
• Protection: Reverse polarity, overcurrent & transient protection
• Faceplate: 5052 aluminium
• Housing: UV-stable thermoplastic

Operating Modes

• Mode 1: Unlimited 360° pan + 90° tilt. Support group or individual light control.
• Mode 2: Preset home position. Auto homing on startup; joystick returns to preset position.
• Extra Functions: Invert controls for upside-down mounting; disable auto-sleep to lock aiming position.

What's In The Box

• 1 × 40W Rotating Light Unit
• 1 × In-Cab Wired Joystick Controller
• 1 × Plug-and-play fused wiring harness, waterproof connectors
• Stainless steel mounting bolts & fittings
• Rubber vibration-dampening washer
• Hex-key installation tool set
• User instruction manual

Installation & Wiring

Plug-and-play harness with battery lead, controller cable and waterproof connectors. Single light uses 7.5A fuse; dual lights use 15A fuse. Universal mounting holes for most vehicles & heavy equipment.
